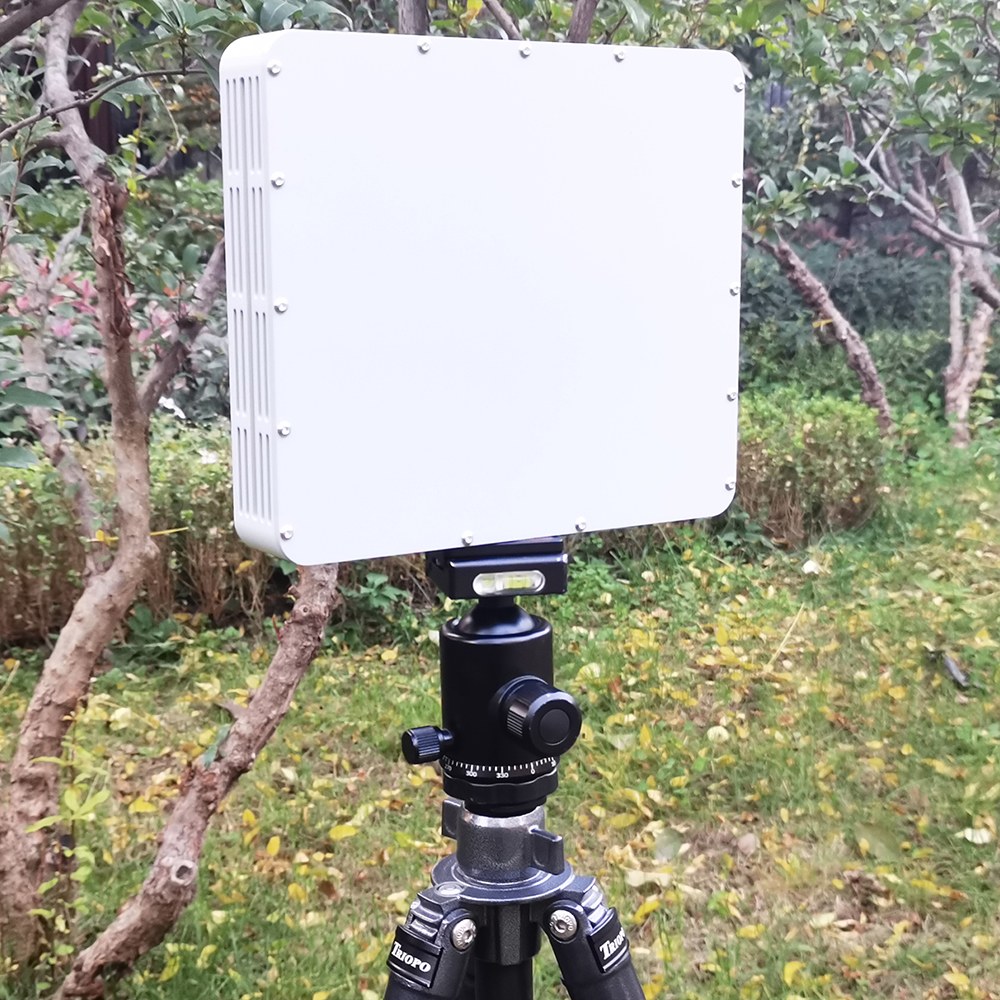

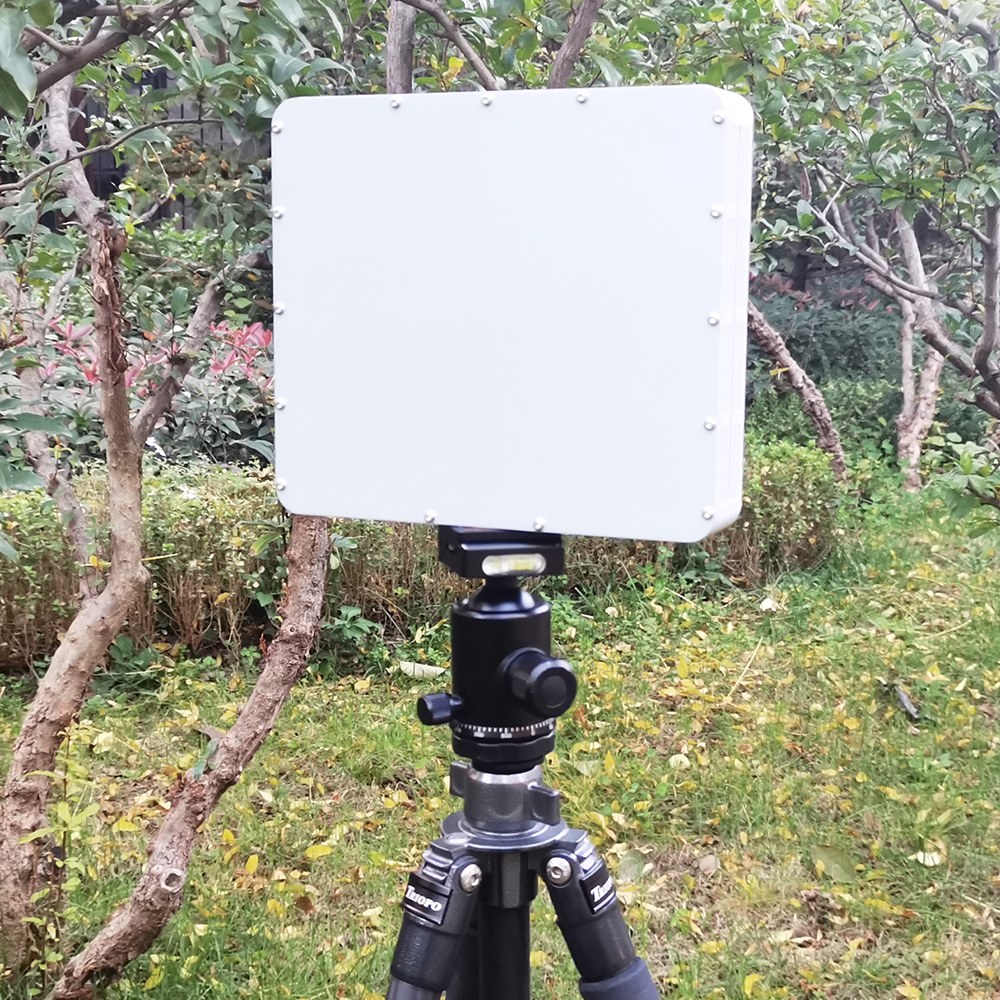

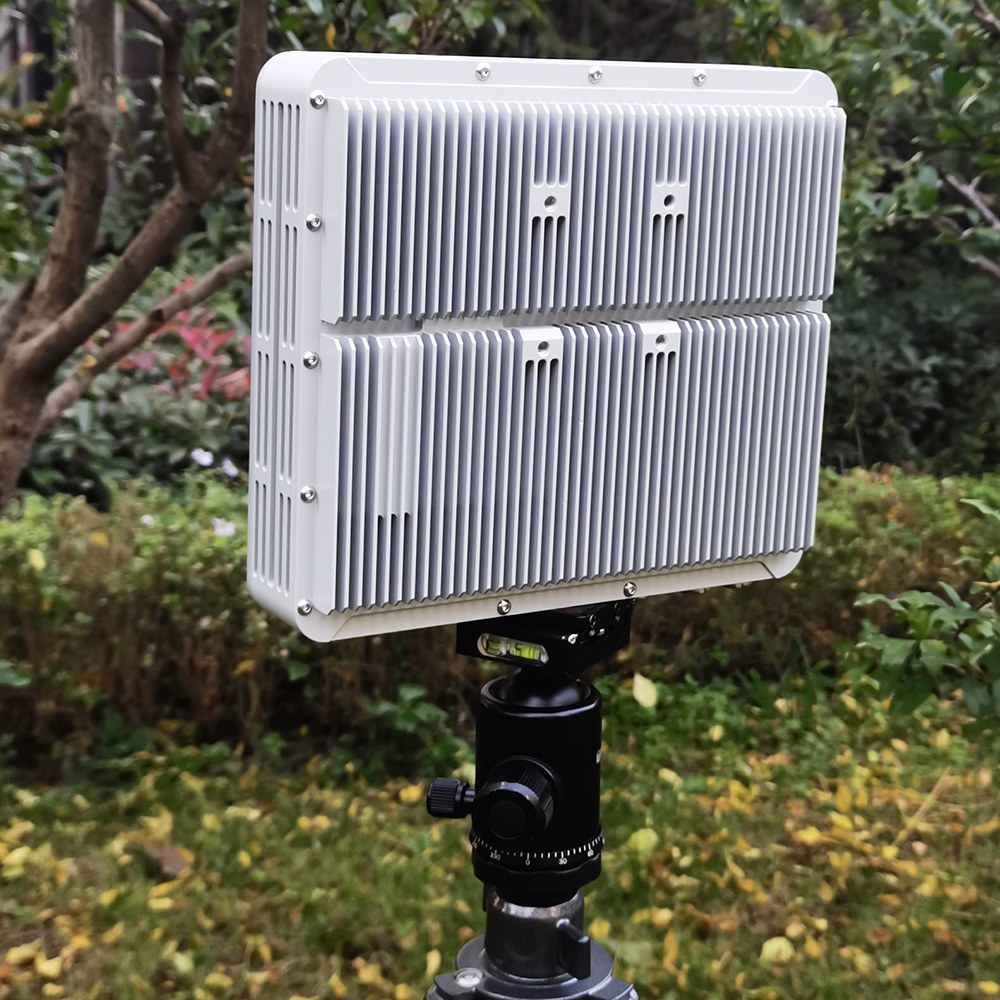

The AJ-GR01 moving target surveillance radar employs a MIMO system, enabling continuous detection and tracking of moving targets within an area around the clock and in all weather conditions. It boasts advantages such as high detection sensitivity, low false alarm rate, and high accuracy. Key functions include:

1. Detection radius ≥1km for personnel, ≥1.5km for vehicles and vessels, with a 90° field of view; detection performance is unaffected by weather or lighting conditions;

2. Tracking of over 100 moving targets within the field of view, providing real-time output of target distance, speed, orientation, and type information, enabling suspicious target location and early warning.

3. Setting of shielded zones and warning zones, enabling target boundary crossing alarms, alarm log recording, and playback.

4. Support for radar-optical linkage, guiding high-definition cameras for video tracking, capture, and recording of targets; good compatibility and scalability, facilitating integration with other platforms and supporting multi-device networking.

Specifications:

Spatial coverage: Azimuth: 90° | Range: 3km | Blind zone: 50m

Working frequency band: K band

Scanning range: 90°
Detection distance:
≥1.2km for pedestrians,
≥2km for vehicles,
≥3km for ships
Detection accuracy:
distance accuracy ≤3m
azimuth accuracy ≤0.25°
speed accuracy ≤±0.1m/s±2%
Number of target batches tracked simultaneously: ≥100 batches
Detection speed range: 0.2m/s～40m/s
Data interval: ≤1.2s
Power consumption: ≤50W
Power supply range: DC power supply, 18~28V
Communication interface: Gigabit Ethernet
Radar weight: 4.5kg
Environmental adaptability: working temperature -40～+55℃, protection grade IP67
Size:365*250*65
