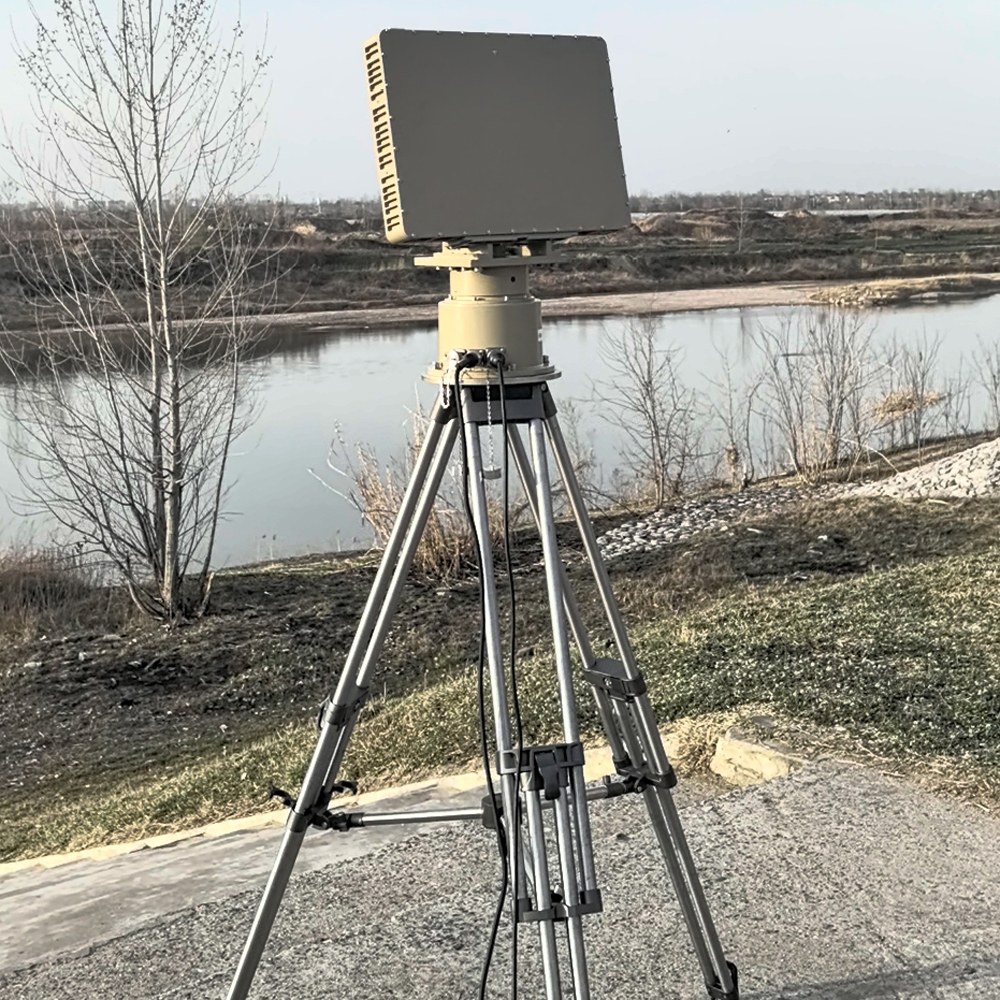

AJ-TR02 Low-Altitude Surveillance Radar

The AJ-TR02 low-altitude surveillance radar is a high-performance, low-altitude target monitoring system. Leveraging its advanced technical architecture and exceptional performance, it excels in low-altitude detection. It accurately identifies and continuously tracks low-altitude aircraft, drones, and birds, while also monitoring ground and surface targets, providing critical data for low-altitude situational awareness. It features wide coverage and high cost-effectiveness, high refresh rate and robust maneuverability, high detection rates and low false alarms. It has hight portability and ease of operation, small close-range blind spot and multi-target detection, low intercept rate, excellent tracking, and robust system integration. Furthermore, the system incorporates digital beam forming (DBF) technology, achieving low equivalent omnidirectional radiated power (EIRP), high measurement accuracy, and robust multi-target processing capabilities. Its exceptional anti-interference performance ensures stable and reliable operation even in complex electromagnetic and meteorological environments.

Operating frequency band: Ku band

Spatial coverage:

Pitch: -5°～60° | Azimuth: 360° | Range: 3.5km | Blind spot: 50m | Altitude: 600m

Detection:

Small rotary-wing UAV (RCS=0.01m²): ≥1.5km | Medium fixed-wing UAV (RCS=1m²): ≥3.5km | Personnel: ≥2.5km | Helicopter, vehicle: ≥3.5km

Measurement accuracy:

Distance: ≤5m (RMS) | Azimuth angle/pitch angle: ≤0.4° (RMS)

Antenna rotation speed:

20rpm (3s) / 30rpm (2s) / 60rpm (1s) (upgradeable)

Number of targets tracked simultaneously: ≥100 batches

Tracking speed: 1m/s～100m/s

Power supply: DC18～28V (with AC220V-DC24V adapter)

Communication: Gigabit Ethernet Aviation Plug

Power consumption: ≤120W

Operating temperature and humidity: -40℃～+55℃/≯90%

Protection level: IP66 (host IP67)

Weight: 9Kg (host)

Dimensions: 440*355*90 (host)
