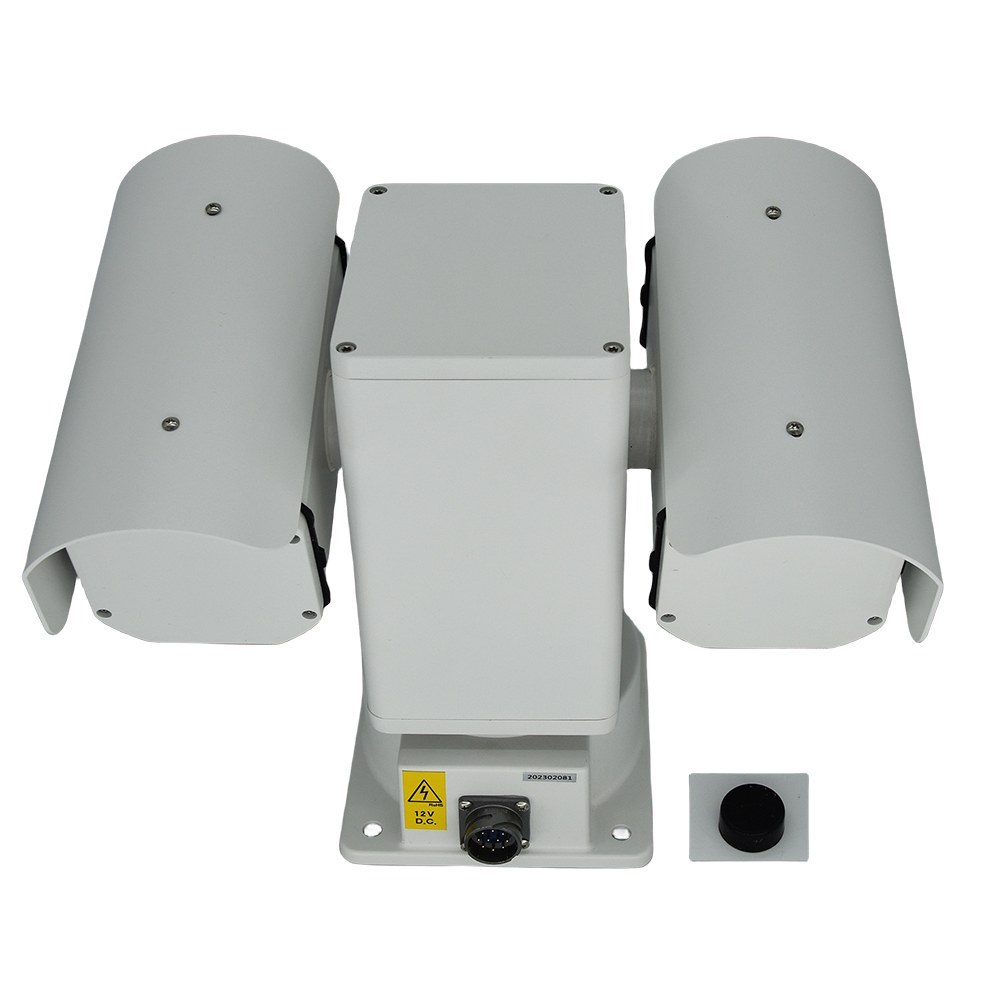

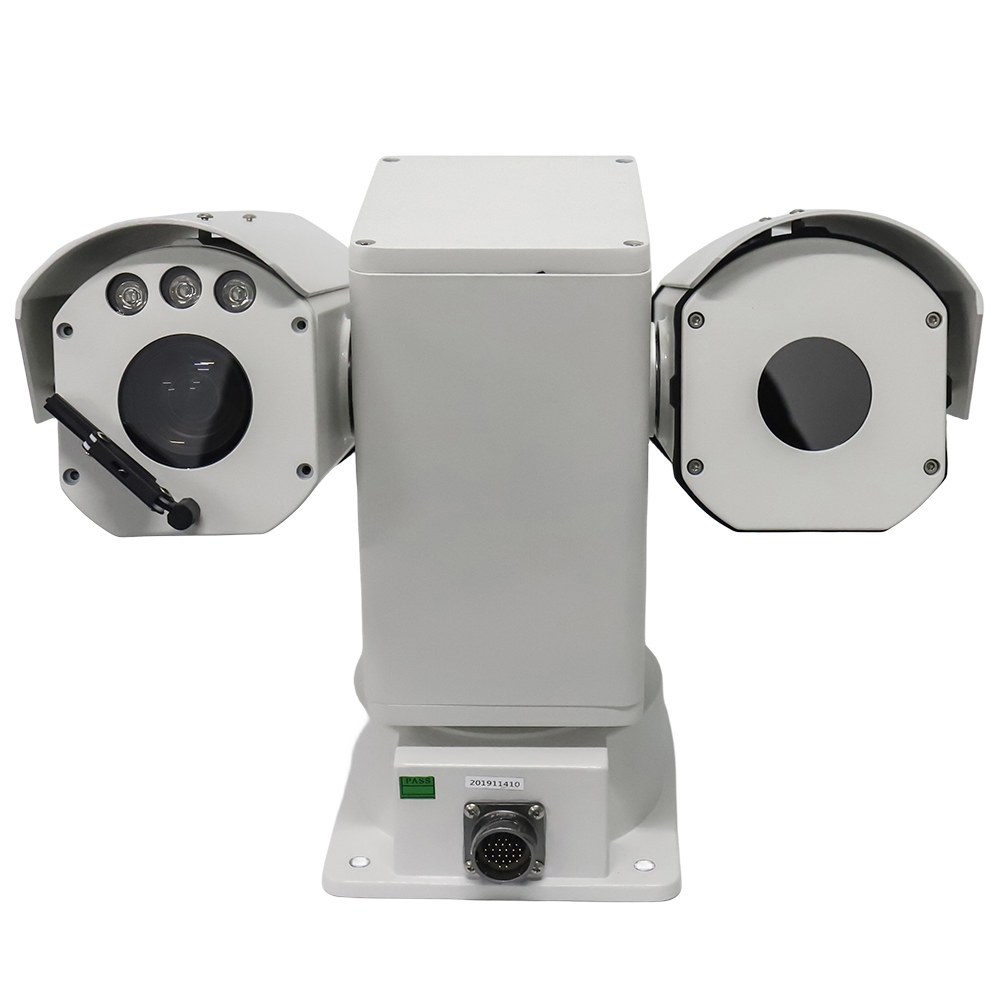

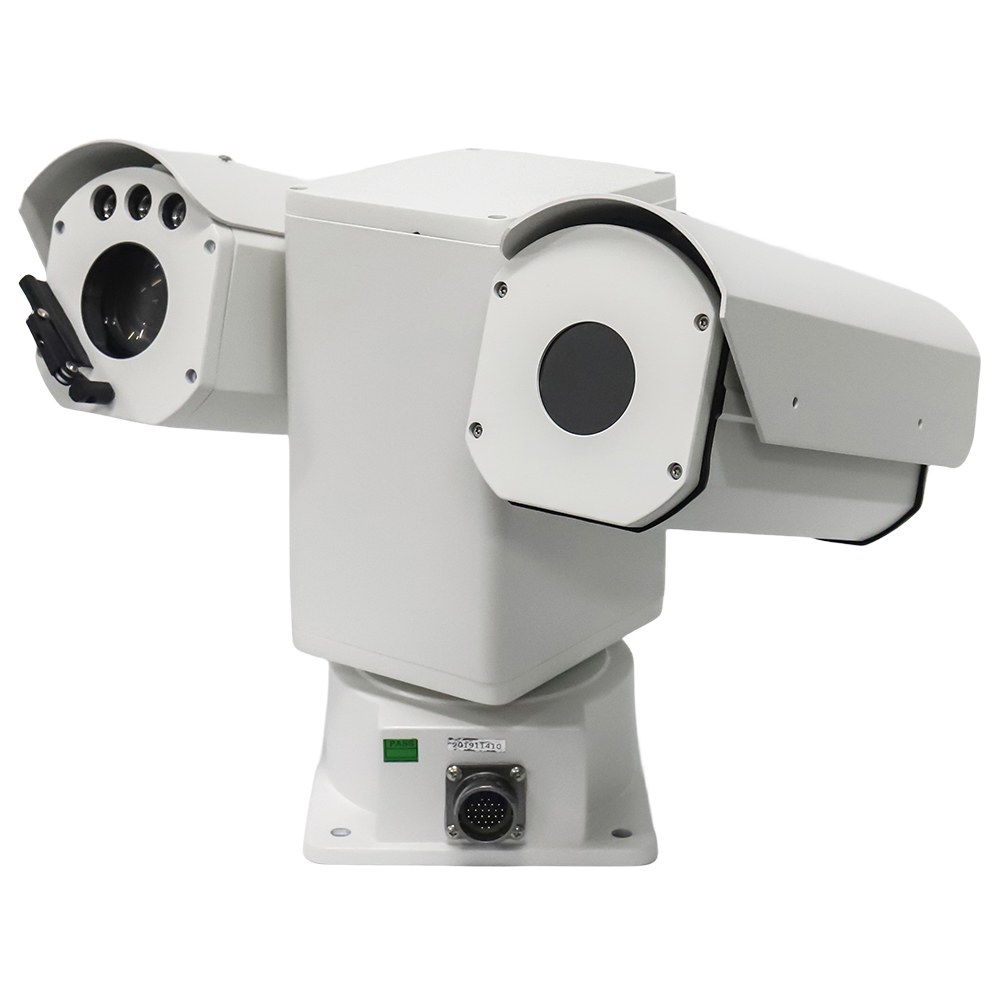

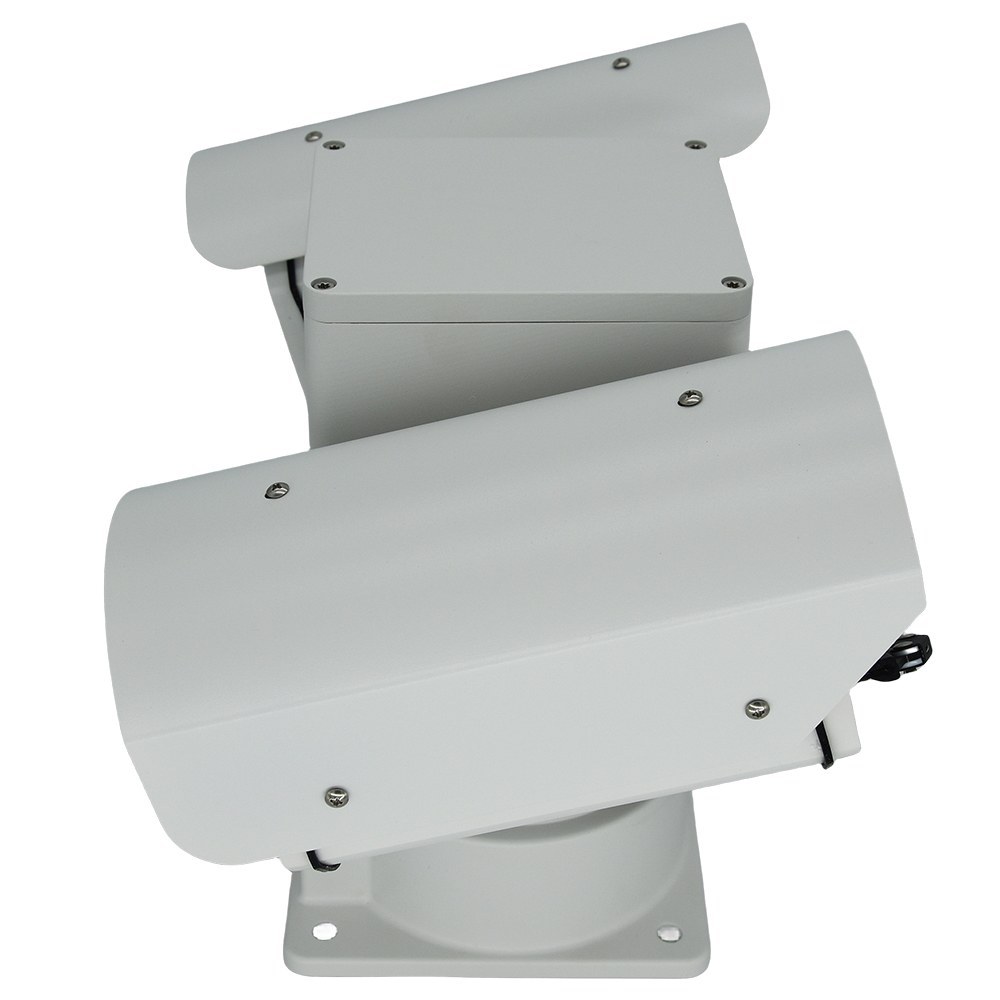

Vehicle Mounted Uncooled Thermal PTZ Camera 25mm 640 Pixels with 32X Zoom Day Camera AJ-CT-SH05-25-32-W
Whatsapp：
+86 13684913991
Vehicle Mounted Uncooled Thermal PTZ Camera 25mm 640 Pixels with 32X Zoom Day Camera AJ-CT-SH05-25-32-W for Security Patrol, Border Defence, Fire Dection and so on.
With Wireless Digital 4K HD Video Transceiver(optional), this PTZ camera can work on Unmanned sweepers, unmanned harvesters, unmanned mining trucks, robots and so on.
Note: This model can be update with professional AI auto detect& track function, please refer to AI Track AJ-CT-SH05
Uncooled Thermal Imaging Camera Features
1. 640 ×512 high-resolution
cooling detector, 12μm pixel, NETD≤50mK, clearer observation of small
targets, long detection distance;
2. 25mm, , FOV14.8° × 11.2°.
3. DDE function, output hot white / hot black / pseudo color image.
4. Low power consumption, fast start-up, stable performance, clear and uniform image;
HD Daylight Camera
1. 1/2.8", 2.0 megapixel, progressive scan, CMOS
2. 5.9～188.8mm, 32x Optical Zoom
3. 2Mp(1920x1080) Resolution
4. Up to 120dB WDR (Wide Dynamic Range)
5. Optional network interfaces with Ethernet RJ45.
6. ONVIF Conformance
7. 6KV surge protection designed for network interface.
8. Electric image stabilization
9. Defog function (optional)
Specification list of the uncooled thermal PTZ camera
|
Day camera |
|
|
Image Sensor |
1/2.8” progressive scan CMOS |
|
Min. Illumination |
Color:0.05 Lux @(F1.6,AGC ON); Black:0.005Lux @(F1.6,AGC ON); |
|
Image sizes |
1920×1080 |
|
Compressed format |
H.264/H.265 |
|
Focal Length |
5.9-188.8mm，32x optical zoom |
|
Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP ,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP ,Bonjour |
|
Interface Protocol |
ONVIF(PROFILE S,PROFILE G) |
|
Thermal Imaging camera |
|
|
Resolution |
640X512 |
|
Pixel spacing |
17μm |
|
Response band |
8-14μm |
|
Sensitivity(NETD) |
≤50mk@300K |
|
Lens |
25 mm |
|
FOV |
14.8° × 11.2°. |
|
Lens F Value |
F1.0 |
|
Grayscale alarm |
Realize image tag alarm, serial communication alarm, IO alarm |
|
polarity |
Black hot/white hot |
|
Pseudocolor |
|
|
Control interface |
RS-232/RS-485/UART/RS-422 |
|
PTZ specification |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.5°/s ~ 60°/s |
|
Tilt Range |
–90° ~ +90° (auto reverse) |
|
Tilt Speed |
0.5° ~ 60°/s |
|
Preset/track |
256 preset,6 cruising tracks |
|
Communication |
Pelco D & Pelco P; 2400bps to 19200bps for optional,RS485 control |
|
Auto pan speed |
0.5~60°/s |
|
Pattern tour |
Four pattern tours ,each one can record 200s |
|
4 Alarm in |
Normal open, when closed alarm |
|
1 Alarm out |
NC/NO output |
|
Heat/defrost/wiper |
Standard configuration |
|
Power supply |
DC9-36V±10% |
|
Power consumption |
≤40W |
|
Weight |
Max.7.5Kg |
|
Installation method |
Flat base installation, support hoisting, wall mounting |
|
Relative humidity |
10-90%RH |
|
Operating temperature |
-40°C~+60°C |
|
Dustproof & waterproof |
IP66 |
|
|
