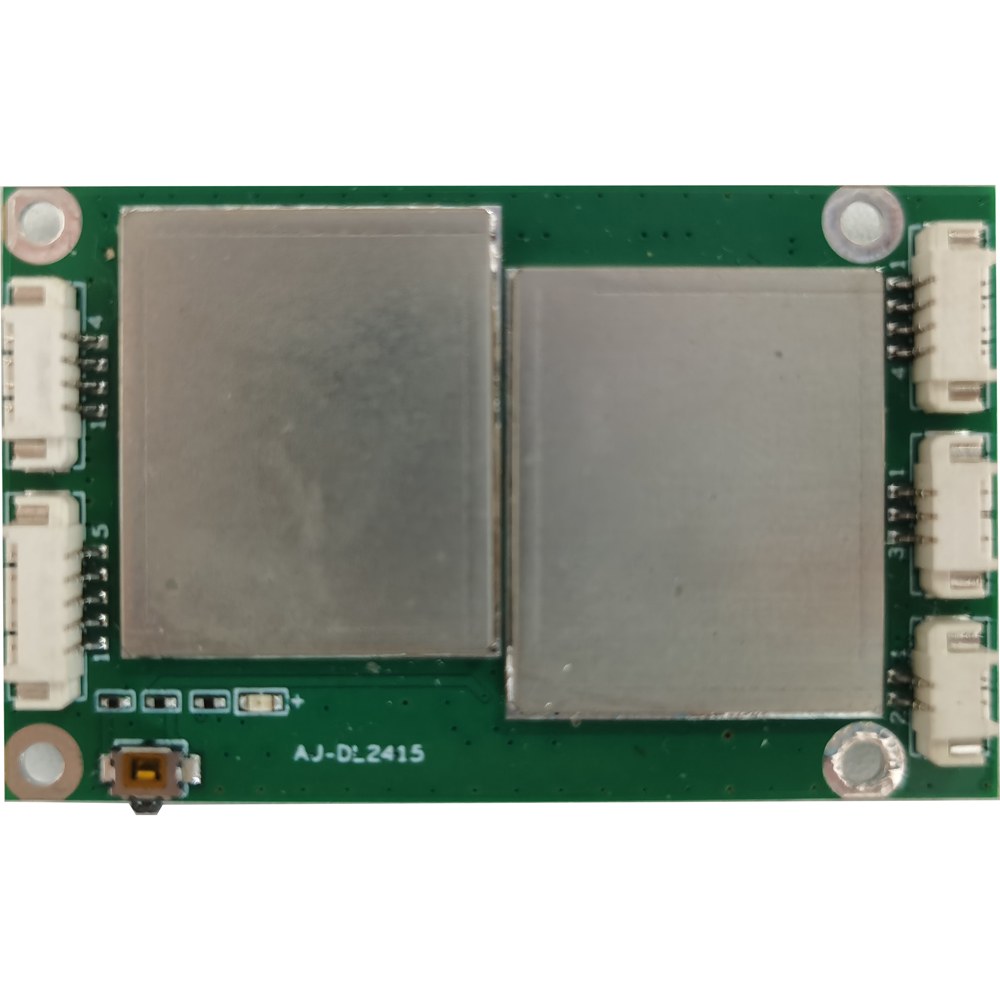

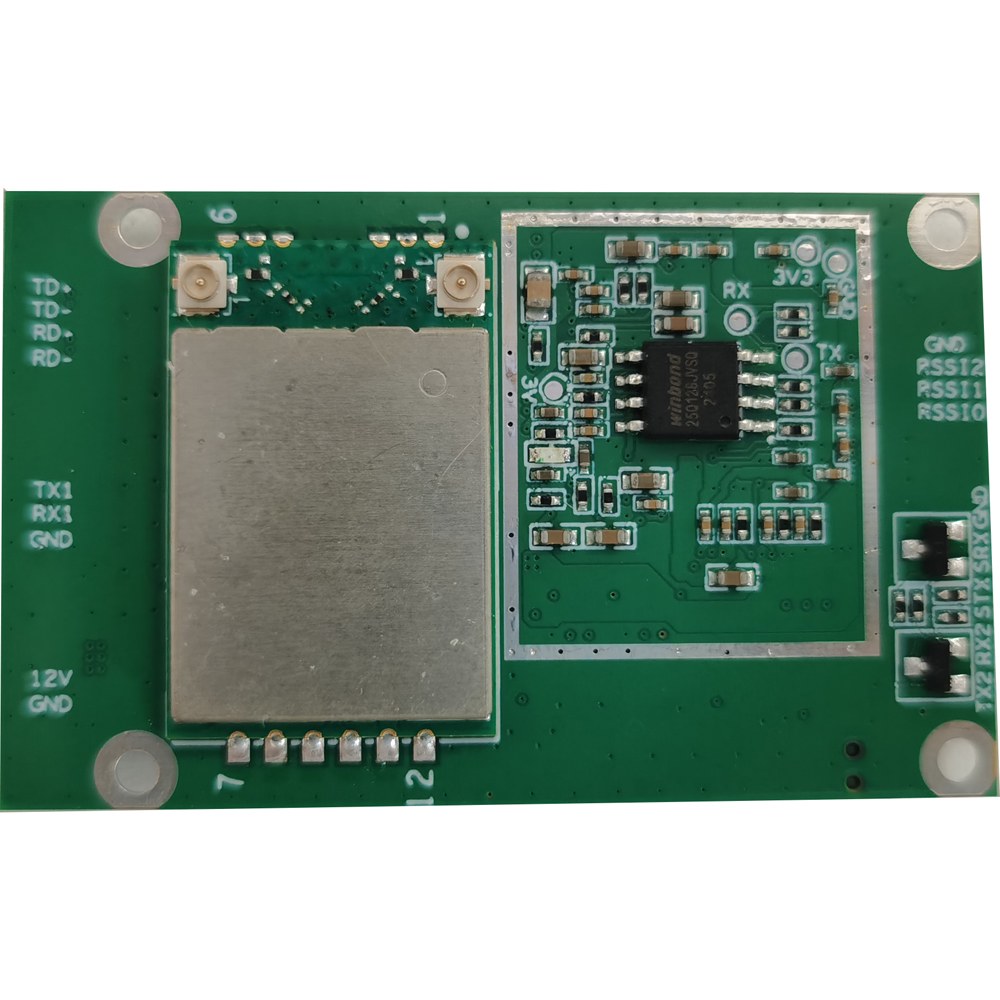

Product name: 2.4Ghz and 5.8Ghz Dual Frequency Long Range 20km Drone& UVA Wireless Digital HD High-definition Video& Photo Transmission System AJ-DL2415

Worked with Thermal PTZ Cameras, AI Auto Detect& Track Thermal PTZ Camera, this wireless digital transceiver are popularly used on unmanned sweepers, unmanned harvesters, unmanned mining trucks, robots, UAV and so on...

Note: This model is 2.4Ghz and 5.8Ghz dual band, we have only 5.8Ghz model also, please refer to 5.8G 4K HD Digital Wireless AV Transceiver AJ-DL582

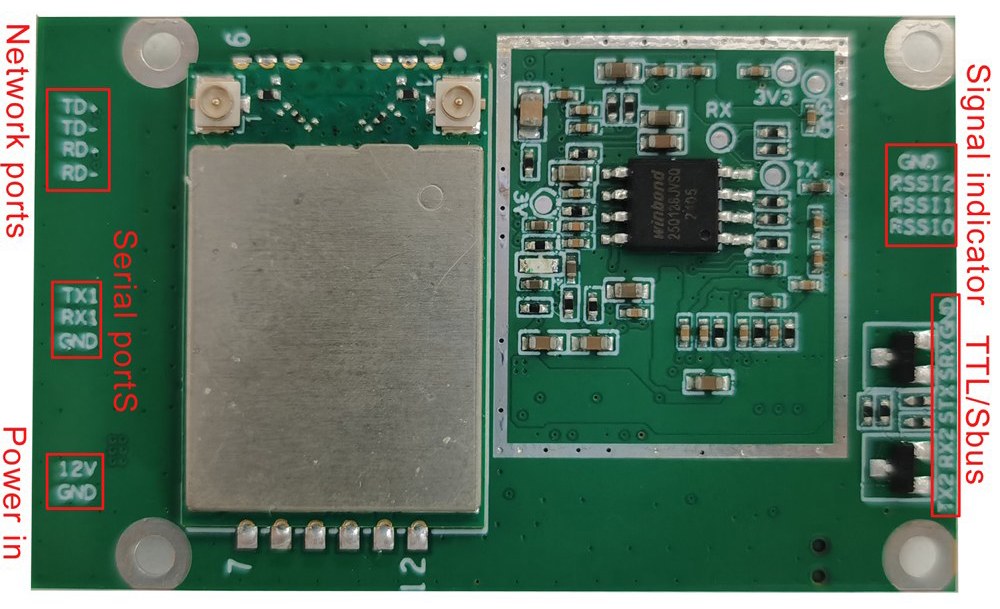

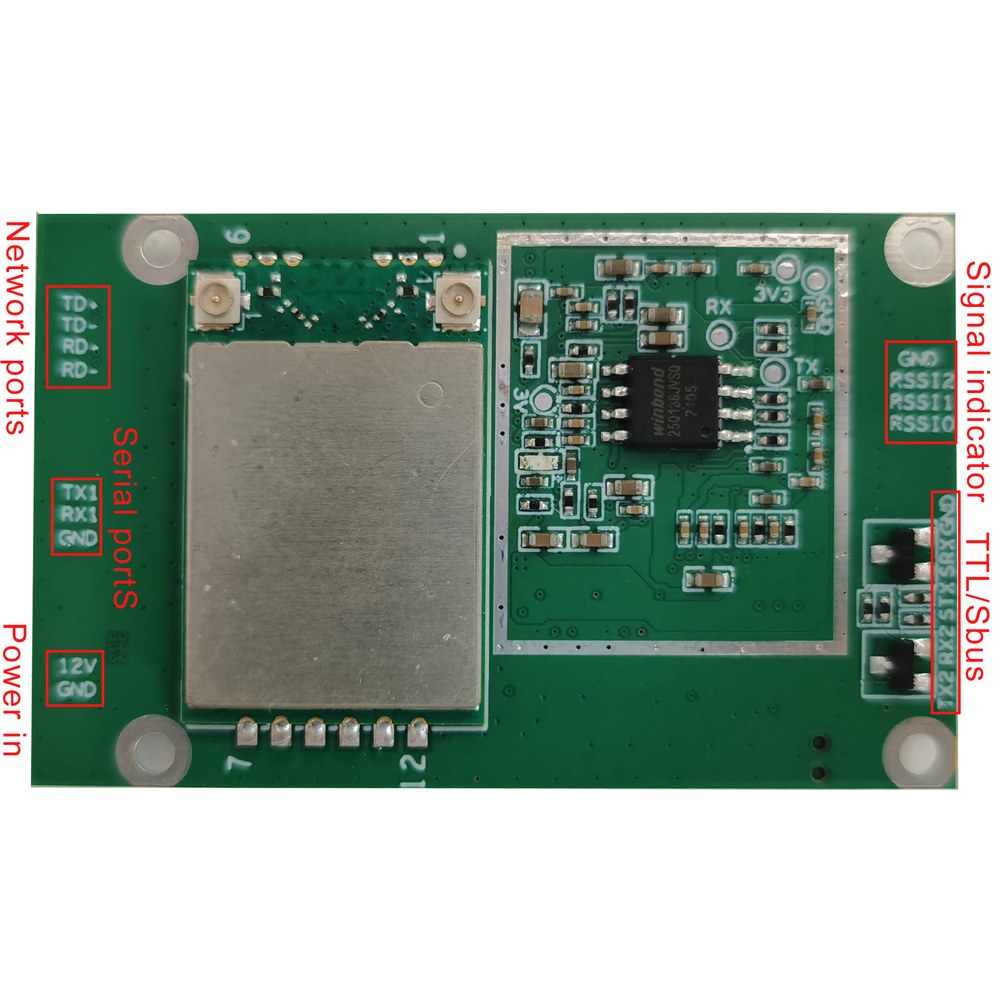

Interface definition:

Key features:
Dual-band selectable: 2.4~2.4835GHz ; 5.15~5.85GHz
The highest data rate can reach 100Mbps.
Ground-to-air transmission distance: 10-20km (with unobstructed line of sight).
The self-organizing network more than 50 units and a relay capacity of more than 20 hops (depends on signal quality and bandwidth requirements).
Advantages:
• Long transmission distance
• Strong anti-interference
• Good diffraction properties
• Safe and stable
Application scenarios：
• Military/Public Security
• Firefighting Individual Equipment
• Emergency Rescue Command
• Wireless monitoring of forests/mountains
• Coal mines
• Electricity supply, surveying

The solution:

Others:

1. Provide guidance on bare board and integration technology solutions for customers with certain integration capabilities, so that customers can quickly achieve product differentiation positioning.

2. Comprehensive customization services for device appearance, functions and software are optional.

Specification list of the HD wireless digital video transceiver:
