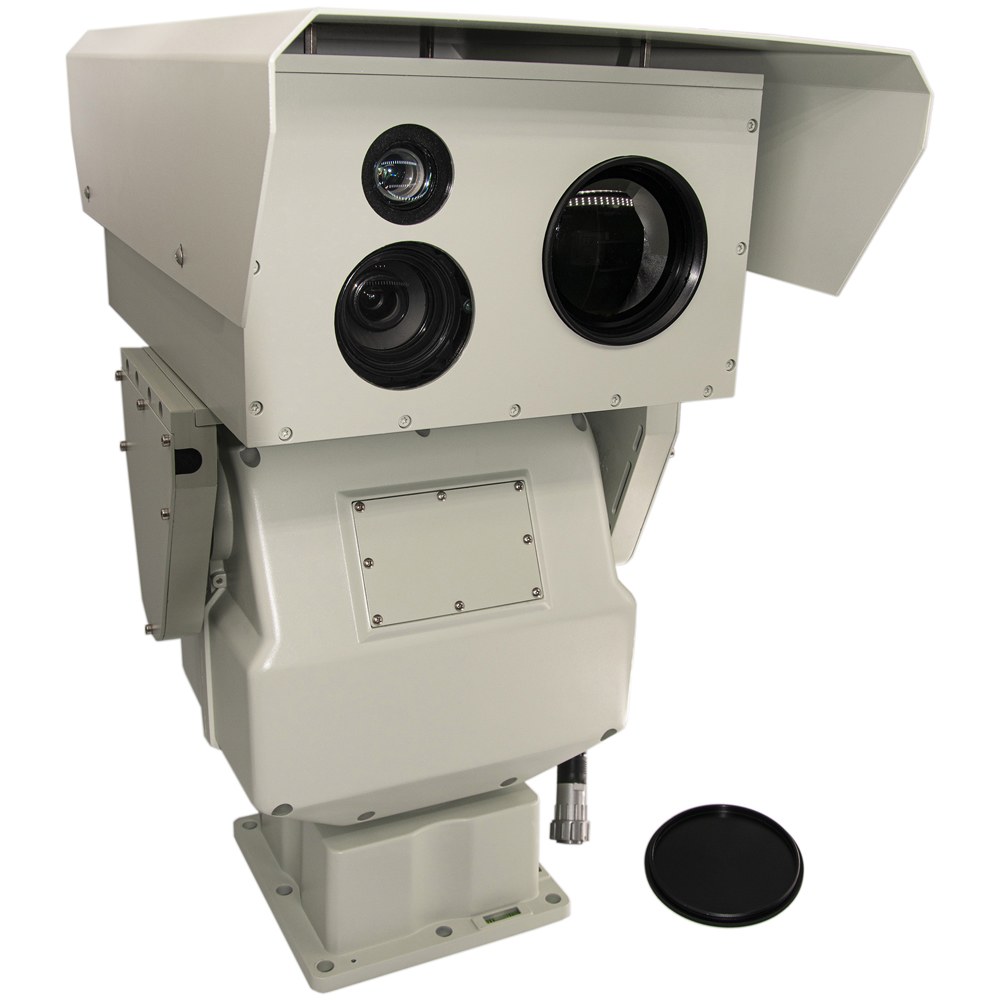

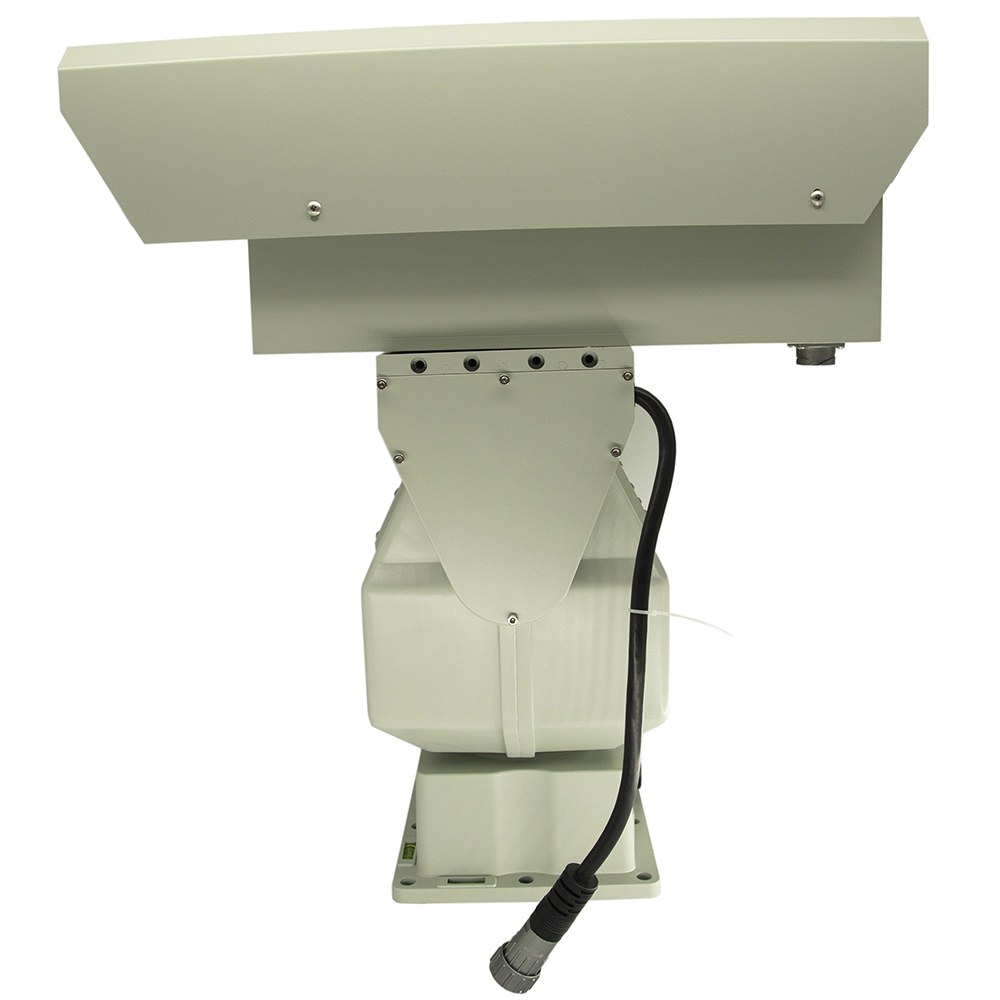

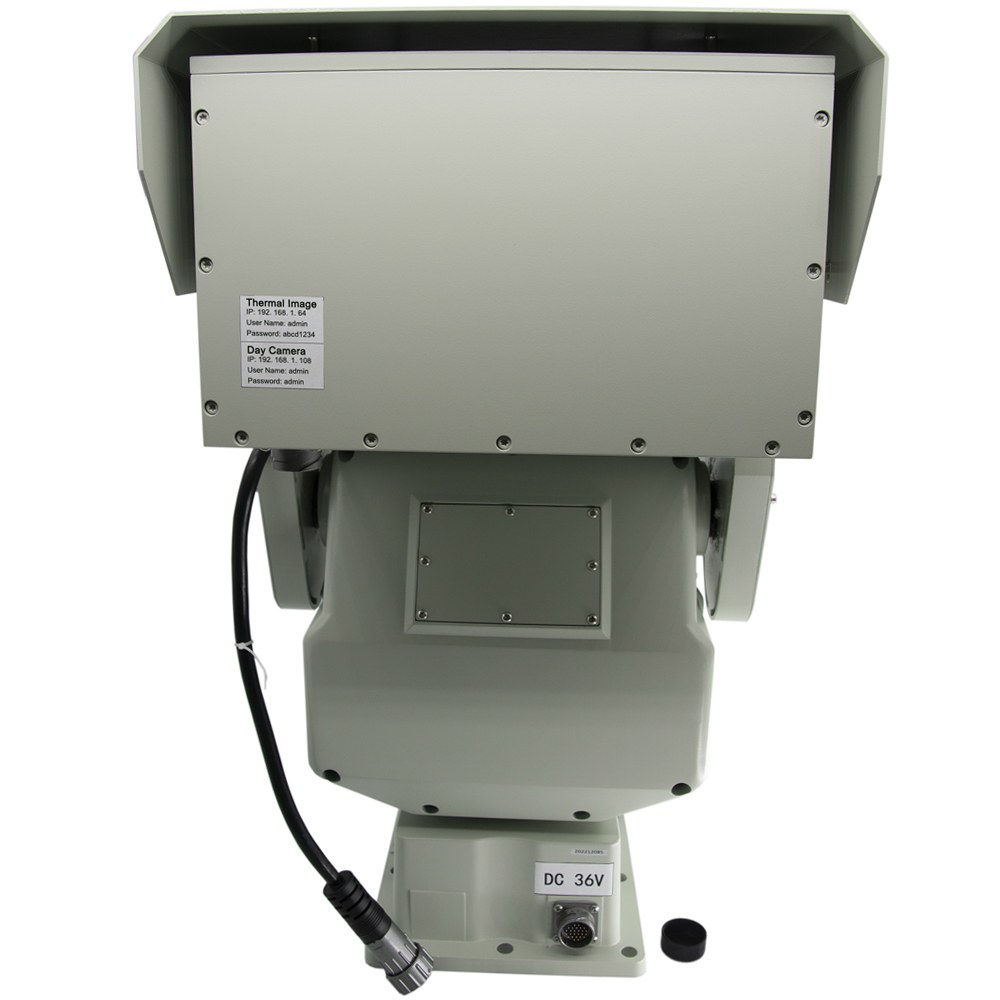

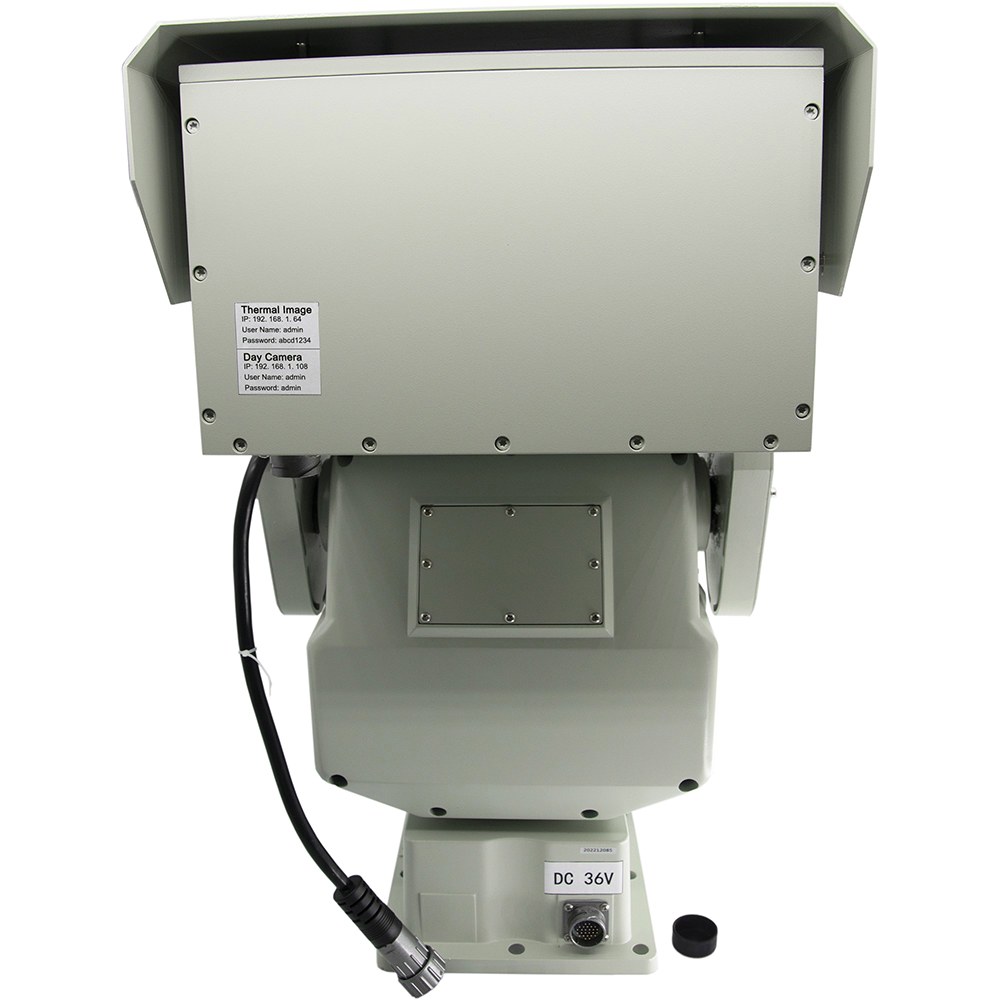

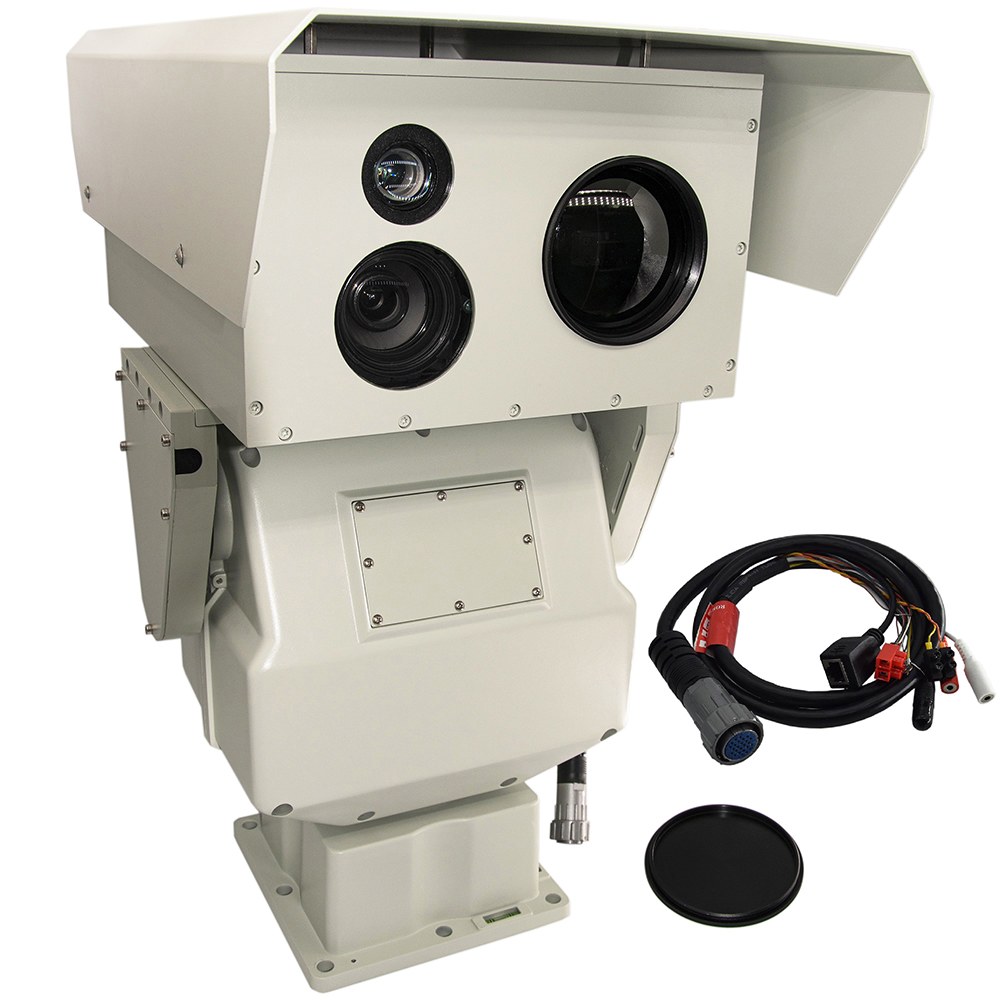

Heavy Duty Long Range Dual Spectrum Thermal PTZ Camera 25-225mm Thermal 52X 6.1-317mm Zoom Visible Camera and Laser Range Finder TPTZ01-225-52, Optional AI Auto Detect& Track Available.
With Wireless Digital 4K HD Video Transceiver(optional), this PTZ camera can work on Unmanned sweepers, unmanned harvesters, unmanned mining trucks, robots and so on.
Uncooled Thermal Imaging Camera Features（This model can be upated to Cooled Thermal PTZ for longer distance and better performance)
1. 640*512 high-resolution cooling detector, 12μm pixel, NETD≤50mK, clearer observation of small targets, long detection distance;
2. 25-225mm, , FOV2.0°×1.6°~17.7°×14.1°.
3. DDE function, output hot white / hot black / pseudo color image.
4. Low power consumption, fast start-up, stable performance, clear and uniform image;
5. Detection range (person:1.8*0.5m):8000m
Detection range (car: 4.0*1.4m):22000M
Detection distance (fire:3m*3m):18000M
HD Daylight Camera Features
1. 1/2.8", 4.0 megapixel, progressive scan, CMOS
2. 6.1～317mm, 52x Optical Zoom FOV65.5 ~ 1.8°.
3. 4Mp(2560*1440) Resolution
4. Up to 55dB WDR (Wide Dynamic Range)
5. Optional network interfaces with Ethernet RJ45.
6. ONVIF Conformance
7. 6KV surge protection designed for network interface.
8. Electric image stabilization
9. Defog function (optional)
Specification of the dual spectrum PTZ camera：
|
Day camera |
|
|
Image Sensor |
1/1.8” progressive scan CMOS |
|
Min. Illumination |
Color:0.05 Lux @(F1.6,AGC ON); Black:0.005Lux @(F1.6,AGC ON); |
|
Image sizes |
2560*1440 |
|
Compressed format |
H.264/H.265 |
|
Focal Length |
6.1-317mm，52x optical zoom |
|
FOV |
65.5 ~ 1.8° |
|
Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP ,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP ,Bonjour |
|
Interface Protocol |
ONVIF(PROFILE S,PROFILE G) |
|
Thermal Imaging camera |
|
|
Resolution |
640*512 |
|
Pixel spacing |
12μm |
|
Response band |
8-14μm |
|
Sensitivity(NETD) |
≤50mk@300K |
|
Lens |
25-225mm |
|
FOV |
2.0°×1.6°~17.7°×14.1° |
|
Lens F Value |
F1.2 |
|
Detection range |
Detection range (person:1.8*0.5m):8000m |
|
Detection range (car: 4.0*1.4m):22000M |
|
|
Detection distance (fire:3m*3m):18000M |
|
|
Grayscale alarm |
Realize image tag alarm, serial communication alarm, IO alarm |
|
polarity |
Black hot/white hot |
|
Pseudocolor |
|
|
Control interface |
RS-232/RS-485/UART/RS-422 |
|
Mechanism Parameter |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0°/s ~ 45°/s |
|
Tilt Range |
–45° ~ +40° (auto reverse) |
|
Tilt Speed |
0° ~ 30°/s |
|
Preset/track |
256 preset,6 cruising tracks |
|
Communication |
Pelco D & Pelco P; 2400bps to 19200bps for optional,RS485 control |
|
Auto pan speed |
0~30°/s |
|
Pattern tour |
Four pattern tours ,each one can record 200s |
|
4 Alarm in |
Normal open, when closed alarm |
|
1 Alarm out |
NC/NO output |
|
Heat/defrost/wiper |
Standard configuration |
|
Power supply |
DC36V±10% |
|
Power consumption |
≤120W |
|
Weight |
Max.48Kg |
|
Installation method |
Flat base installation |
|
Relative humidity |
10-90%RH |
|
Operating temperature |
-40°C~+60°C |
|
Dustproof & waterproof |
IP66 |
