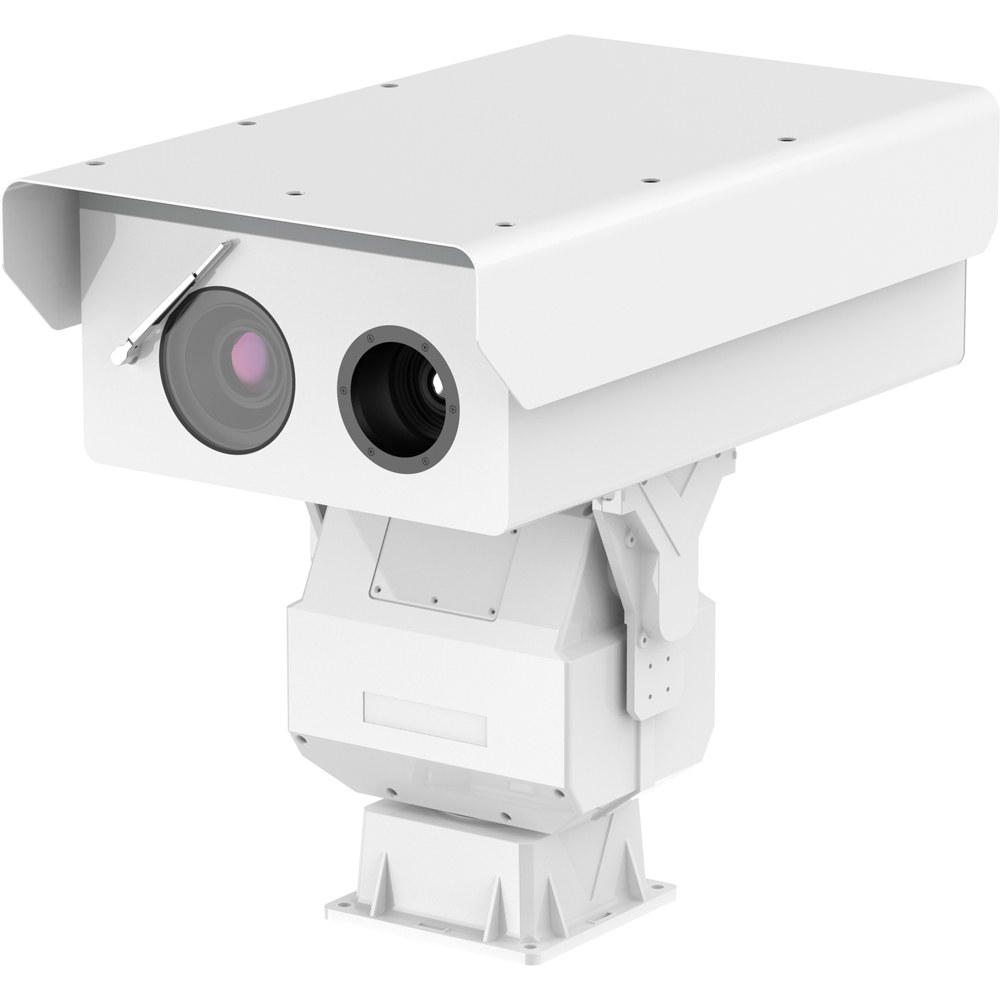

Heavy Duty Long Range Thermal PTZ Camera 640x512 20-100mm Thermal With 30X Zoom Optical Lens AJ-TPTZ01-100-30
Whatsapp：
+86 13684913991
Product Name: Heavy Duty Long Range Thermal PTZ Camera 640x512 20-100mm Thermal Imager Camera With 30X Zoom Optical Lens AJ-TPTZ01-100-30, Used for Border Defence Patrol, Marine Ship Patrol and so on. Optional Auto Dectect& Track Function Available.
With Wireless Digital 4K HD Video Transceiver(optional), this PTZ camera can work on Unmanned sweepers, unmanned harvesters, unmanned mining trucks, robots and so on.
Uncooled Thermal Imaging Camera Features（This model can be upated to Cooled Thermal PTZ for longer distance and better performance):
1. 640 ×512 high-resolution cooling detector, 12μm pixel, NETD≤50mK, clearer observation of small targets, long detection distance;
2. 20-100mm, , FOV4.4°×3.5°~22.5°×17.8°.
3. DDE function, output hot white / hot black / pseudo color image.
4. Low power consumption, fast start-up, stable performance, clear and uniform image;
5. Detection range (person:1.8x0.5m):4000m
Detection range (car: 4.0x1.4m):9800M
Detection distance (fire:3mx3m):12500M
HD Daylight Camera Features:
1. 1/2.8", 2.0 megapixel, progressive scan, CMOS
2. 6～180mm, 30x Optical Zoom FOV54.3°- 2.1°.
3. 2Mp(1920x1080) Resolution
4. Up to 120dB WDR (Wide Dynamic Range)
5. Optional network interfaces with Ethernet RJ45.
6. ONVIF Conformance
7. 6KV surge protection designed for network interface.
8. Electric image stabilization
9. Defog function (optional)
10. Fire detection
11. Alarm output
12. Video analysis, Line crossing, motion detection, tripwire, intrusion, object abandoned / missing.
13. Micro SD memory for min 12 hour recording onboard. Only for visible day camera.
|
Day camera |
|
|
Image Sensor |
1/2.8”progressive scan CMOS |
|
Min. Illumination |
Color:0.05 Lux @(F1.6,AGC ON); Black:0.005Lux @(F1.6,AGC ON); |
|
Image sizes |
1920×1080 |
|
Compressed format |
H.264/H.265 |
|
Focal Length |
6-180mm，30x optical zoom |
|
FOV |
54.3°- 2.1° |
|
Protocol |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP ,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP ,Bonjour |
|
Interface Protocol |
ONVIF(PROFILE S,PROFILE G) |
|
Thermal Imaging camera |
|
|
Resolution |
640X512 |
|
Pixel spacing |
12μm |
|
Response band |
8-14μm |
|
Sensitivity(NETD) |
≤50mk@300K |
|
Lens |
20-100mm |
|
FOV |
4.4°×3.5°~22.5°×17.8° |
|
Lens F Value |
F1.2 |
|
Detection range |
Detection range (person:1.8x0.5m):4000M |
|
Detection range (car: 4.0x1.4m):9800M |
|
|
Detection distance (fire:3mx3m):12500M |
|
|
Grayscale alarm |
Realize image tag alarm, serial communication alarm, IO alarm |
|
polarity |
Black hot/white hot |
|
Pseudocolor |
|
|
Control interface |
RS-232/RS-485/UART/RS-422 |
|
PTZ specification |
|
|
Pan Range |
360°(endless) |
|
Pan Speed |
0°/s ~ 45°/s |
|
Tilt Range |
–45°~ +40°(auto reverse) |
|
Tilt Speed |
0°~ 30°/s |
|
Preset/track |
300 preset,5 cruising tracks |
|
Communication |
Pelco D & Pelco P; 2400bps to 19200bps for optional,RS485 control |
|
Auto pan speed |
0~30°/s |
|
Pattern tour |
Four pattern tours ,each one can record 200s |
|
4 Alarm in |
Normal open, when closed alarm |
|
1 Alarm out |
NC/NO output |
|
Heat/defrost/wiper |
Standard configuration |
|
Power supply |
DC36V±10% |
|
Power consumption |
≤120W |
|
Weight |
Max.48Kg |
|
Installation method |
Flat base installation |
|
Relative humidity |
10-90%RH |
|
Operating temperature |
-35°C~+65°C |
|
Dustproof & waterproof |
IP66 |
